Technical Parameters
Model:BM-CNC5ZK03R
Workbench Axis Amount(axis):5
Production Speed(hole/min):≤450
Station:3\2(ø600 disc brush)
Hair Mouth Range(mm):70
Filament length range(mm):50-240
Brush Plate Maximum Length(mm):ø600
Holes diameter range(mm):2.2-8.0
Rated voltage and frequency(V.Hz): 3 phase 380V.50Hz
Air Source Input Pressure(Mpa):0.8
Machine Power(KW):4.5
Weight(KG):3500
Dimension (mm):L-2580*W-2100*H-2100

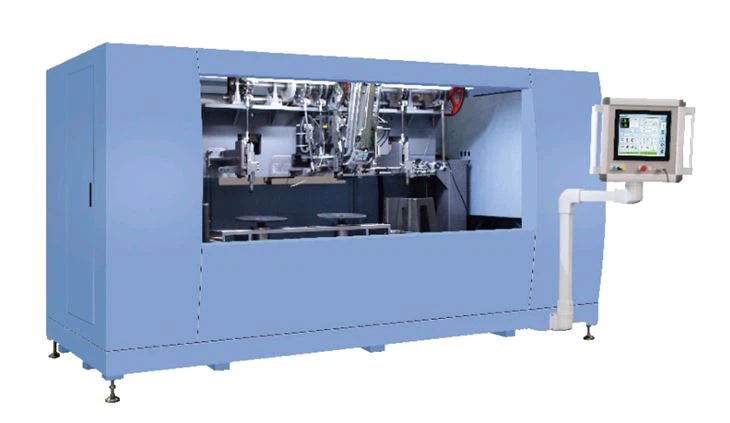

Hot Tags: 5 axis 3 heads disc brush drilling and tufting machine, China 5 axis 3 heads disc brush drilling and tufting machine manufacturers, suppliers
