Split Up And Down Machine Control 12 Axis Spring Machine Control System
Split Up And Down Machine Control 12 Axis Spring Machine Control System

Split Up And Down Machine Control 12 Axis Spring Machine Control System

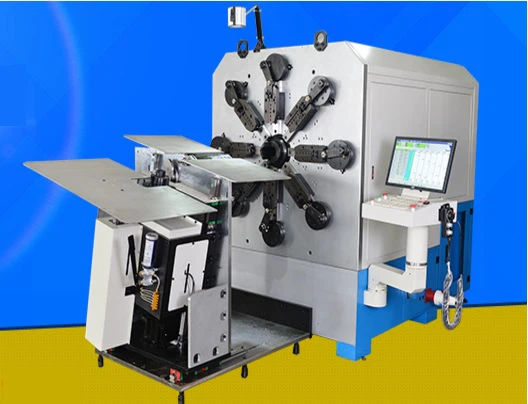

TH1200A-A01 12-axis spring machine control system: split type up and down machine control. The controller adopts ARMA9 processor, which has higher processing efficiency. The host computer is based on Windows platform and has very strong versatility. 2-12 axis servo control; Support 4 groups of probe input, 24 cylinder output; Support wire feed frame winding, wire break alarm detection and wire feed frame acceleration output function; Provide hand wheel and test knob test processing function, optional handheld box, easy to adjust the machine; Programming is intuitive, simple and easy to learn; Comprehensive and complete information prompt function; Support U disk function, easy to achieve software upgrade; Support LAN,
Send Inquiry

● The system adopts AMC1600E+PC split control scheme, which is mature and stable.

● Support for 12-axis (up to 16-axis) EtherCAT bus control and

The 6-axis optional pulse control.

● Support 12-axis universal spring machine, 6-axis compression spring machine, 7-12 axis molding machine.

● It can support remote operation (remote monitoring or remote updating procedures after connecting to the external network).

● Support 12-axis handheld box.

● Support mouse, keyboard, support universal display (can support touch screen).

● The upper computer graphical interface adopts Windows style, beautiful and generous.

● The upper and lower machine uses network communication (optional serial communication), stable and rapid transmission.

● Support 36 input (including 4 probe), 24 output.

● Provide multi-level rights management, parameter cross-version backup and recovery, convenient equipment maintenance and upgrade.

● Support hand wheel, test processing, easy programming and debugging.

● Tabular programming, support teaching input, programming is simple and fast.

● Support wire feed frame winding, running, breaking alarm detection.

● Support IO port, level free configuration.

● Multi-language support, language packs can be translated by customers themselves.
