Product name: SR20
Wrist load: 20 kg
Maximum working radius: 1588 mm
Product Info
SR series general robot appearance compact structure, each joint are installed high precision gear reducer. High speed of joint velocity can work in a small space with the flexible operations. It can operate, such as handling, stacking, assembly, etc. Also it has a flexible installation.
Quick Details
Type: Packaging Line
Condition: New
Application: Chemical, Food, Medical
Driven Type: Mechanical
Place of Origin: Shanghai, China
Brand Name: STEP
Certification: CE
Function: Palletizing, stacking, carrying, packing and so on
Robot clamp: Designed according to products
Principal Data
Model | SR20 | |
Wrist Payload | 20kg | |
Number of axis | 6 | |
Max Speed | J1 | 150°/S |
J2 | 120°/S | |
J3 | 120°/S | |
J4 | 360°/S | |
J5 | 300°/S | |
J6 | 450°/S | |
Max Operation Area | J1 | ±165° |
J2 | +40° ~-155° | |
J3 | +165° ~-100° | |
J4 | ±360° | |
J5 | ±120° | |
J6 | ±360° | |
The Max Moment Allowable Torque | J5 | 186NM |
J6 | 98NM | |
Weight | 240 kgs | |
Position Repeat Accuracy | ±0.05mm | |
Working Temperature | 0~45 ℃ | |
Working Space

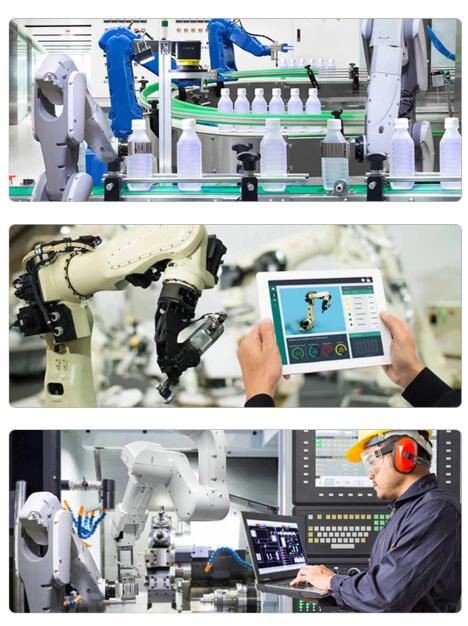

Application
Materials handling and palletizing
Assembling
Casting polishing
Cutting, polishing, deburring, cleaning, polishing, water cutting and other processing function
Our Service
1. Swift delivery: Enough stock
2. Original products
We're manufacturer.
3. Quality Assurance
12 months
4. Technical Support
Including inspection,repair and maintenance with all kinds of technical support.
5. Quickly responce
24hours online and answer your question quickly.
Our Advantage
1. Cost: Cheaper than overseas brand with same quality (ABB/ KUKA/ FANUC)
2. International Safety Standard: Make the Robot comply with International Safety Standards.
3. Best After-sales Service: We have professional technical service team can provide 24 hours online support.
FAQ
Q: Do I need to assemble an independent welding torch and power source?
A: Equipping with welding torch and power source completely with matched communication protocol.
Q: Is the robot easy to use?
A: Yes, the programming is very easy and use teaching mode for programming.
