High Quality Industrial Universal Robots Industrial Welding Robot SA1800
SA1800 is specially designed for arc welding with compact structure, small size, light weight, 6kgs payload. It has good welding reliability, flexible installment ways (horizontal mount, wall mount and ceiling mount). It's easy to access to narrow spaces.
Model | SA1800 | |
Wrist Payload | 8 kgs | |
Max Working Radius | 1818mm | |
DOF | 6 | |
Max Speed | J1 | 150°/S |
J2 | 150°/S | |
J3 | 160°/S | |
J4 | 360°/S | |
J5 | 320°/S | |
J6 | 360°/S | |
Max Operation Area | J1 | ±165° |
J2 | +65° ~ -180° | |
J3 | +170° ~ -100° | |
J4 | ±185° | |
J5 | ±120° | |
J6 | ±360° | |
The Max Moment Allowable Torque | J5 | 54Nm |
J6 | 29Nm | |
Weight | 148kgs | |
Position Repeatability | ±0.05mm | |
Working Temperature | 0~45° | |
IP Protection Level Of Robot | IP40 | |
IP protection Level of Control Cabinet | IP30 | |
Features
Large working space
High position repeat accuracy
Stable performance
High running speed
Highly optimized for general use
Modular mechanical structure design
Perfect welding reliability

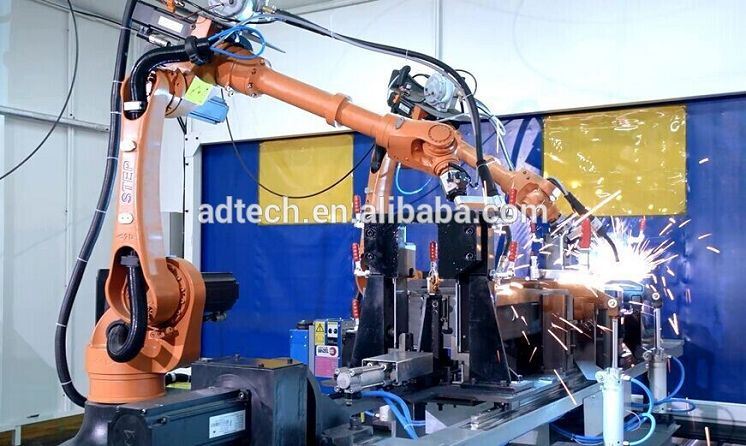

Application
Arc welding, cutting, materials handling, palletizing
Stabilize and improve weld quality and ensure its homogeneity
Characteristics
Improve productivity, a day to 24 hours of continuous production
Improving labor conditions, long-term work in hazardous environments
Reduce operational technology requirements for workers
Shorten product modifications and updating cycle, reduce the corresponding investment in equipment
Can achieve mass production welding automation
Save floor space
Materials handling, palletizing
Greater flexibility, more stable performance, lower power consumption
Maximize throughput with high-speed performance
Working Range
ADTECH/ STEP (Stock Code: 002527)
ADTECH (SHENZHEN) TECHNOLOGY CO., LTD. Was established in 2002 and become one of the wholly-owned subsidiaries of STEP in 2014. ADTECH specializes in motion control system including motion controller, stepper & servo driver, motor and industry application software and industrial robot that have been sold into over 103 countries and enjoy a good reputation worldwide.
