Product Introduction

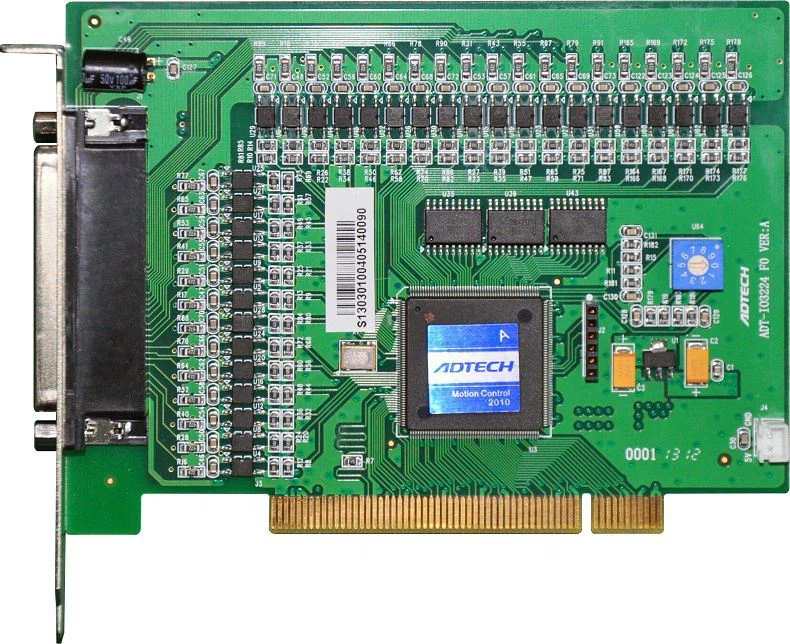

The ADT-IO 3224 is a popular product and easy to use, it provides 32 general digital inputs and 24 general digital outputs. It can be used for the input of various switching signals, sensor signals and other signals and be used for the control of relays, solenoid valves, signal lights or other equipment.
Feature
1) Output point drive current up to 2A;
2) Simple and easy to use software function interface;
Application Environment
1) operating temperature: 0 to 60℃；
2) Temperature: 5 to 95% non-condensing
Configuration Checklist
Type | Name | Name description | Dimension |
ADT-IO3224 | IO card | ADT-IO3224 | 110mm*145mm |
Junction Box | ADT-IO3224F1 | 107.5mm*130mm*26mm | |
Data transmission lines | ADT-D62GG | 1.5M |

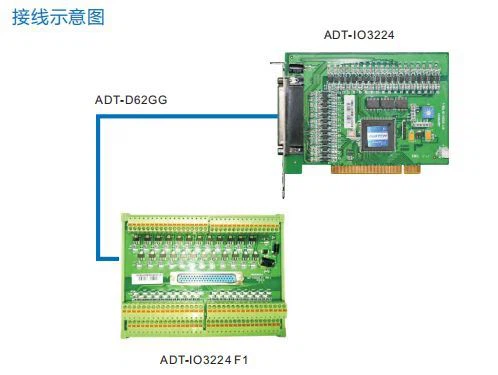

Wiring Diagram
Application
PCB assembly that needs to control or expand I/ O
Deliver, shipping and serving
We provide ocean shipping, international express and air transportation to deliver your products to you. (*Arrival time will vary depending on destination country policy and traffic condition.)
Serving: All products have a one-year warranty and online technical support.
