Item: ACH-06020DI-G
Type: Low-inertia servo motor
Flange: 60mm
AC voltage: 220V
Power: 200W
Product Description

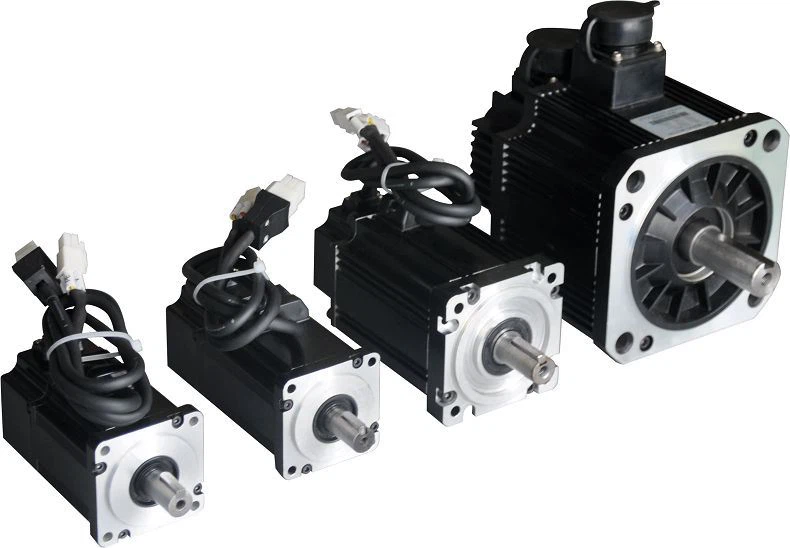

ADTECH ACH Series Servo Motor List | ||||
Model | ACH-06020DI-G | ACH-06040DI-G | ACH-06060DI-G | ACH-08075DI-G |
Matching driver | QS7AA010M | QS7AA010M | QS7AA020M | QS7AA020M |
Flange (mm) | 60 | 60 | 60 | 80 |
Rated power (Kw) | 0.2 | 0.4 | 0.6 | 0.75 |
Rated torque (Nm) | 0.64 | 1.27 | 1.91 | 2.4 |
Max torque (Nm) | 1.91 | 3.8 | 5.73 | 7.1 |
Rated current (A) | 1.7 | 2.5 | 3.2 | 3.5 |
Rated speed (rpm) | 3000 | 3000 | 3000 | 3000 |
Rated voltage (V) | 220 | 220 | 220 | 220 |
Wire q'ty of encoder (ppr) | 2500 | 2500 | 2500 | 2500 |
Dia. Of shaft (mm) | 14 | 14 | 14 | 19 |
Motor length (mm) | 90 | 117 | 134 | |
FAQ
1. What kinds of servos ADTECH provide?
ADTECH provide many kinds of servo motors, the ACH series motors are the 0.1KW to 3.8KW motors with incremental encoder and the QX series motors are the 0.1KW to 3 KW with absolute encoder. We also provide the EtherCAT servo motors to achieve higher requirements.
2. What type of encoder is configured?
We have two types. One is the incremental encoder and another is the absolute encoder.
3. What is the flange size of the ADTCH motor?
ADTECH have various size, mainly divide into three types: low-inertia, middle-inertia and high-inertia motor. We have 60mm, 80mm, 110mm,130mm and 180mm flange motors
Deliver, shipping and serving
Delivery and shipping: We provide ocean shipping, international express and air transportation to deliver your products to you. (*Arrival time will vary depending on destination country policy and traffic condition.)
Serving: All products have a one-year warranty and online technical support.
