Spring is inseparable from daily life tools, but also commonly used parts in industrial production, the spring industry has a very broad market prospects, so spring enterprises are in the improvement of production capacity, improve production efficiency under the full effort, but also put forward high requirements for spring processing technology and processing efficiency. The spring machine as the most basic spring production machine, its technical improvement and promotion has received great attention.

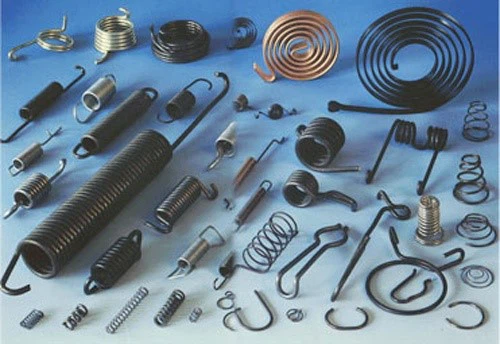

Spring applications: household appliances, electronics, automobiles, crafts, locks, mattresses, mechanical equipment, etc.
Advantages of the CNC820 control system
● System debugging is simple, wiring is simple, interface is simple and beautiful, programming is simple and easy to learn, is the spring industry equipment control system of choice;
3 ~ 6 axis servo motor control;
● List programming
● Online programming in the process of processing
● Hand processing, test processing
● Supports probe function
●X axis for the outer diameter axis, cutting tool, rotation of a single turn, Y axis for the bobbin, Z axis for the spindle

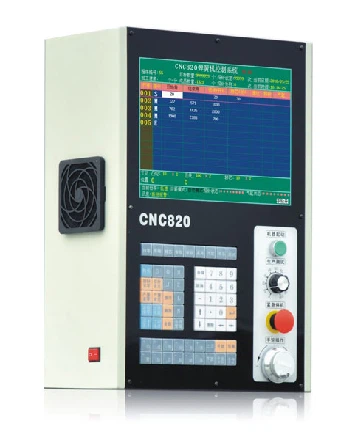

CNC820 controller
System configuration list
 |
|
project name |
Model 20 machine |
|||||||||
|
Device configuration (single device) |
||||||||||
|
Name |
Specification/model |
quantity |
explain |
|||||||
|
Spring machine system |
CNC820 |
1 |
|
|||||||
|
servosystem |
SANYO DENKI servo（2700W） |
2 |
|
|||||||
|
SANYO DENKI servo（1000W） |
1 |
|
||||||||
|
facility request |
||||||||||
|
precision |
Below 0.1° |
|
|
|||||||
|
processing technic |
||||||||||
|
Through the gear drive, the mechanical CAM is used to change the movement time of each mechanical arm to realize the special-shaped spring machining |
||||||||||
|
industrial advantage |
||||||||||
|
1, 24 hours uninterrupted processing, improve production efficiency 2, automatic detection of defective products |
||||||||||
|
Equipment picture |
Finished spring |
|||||||||
|
|
|
|||||||||
