Product Introduction

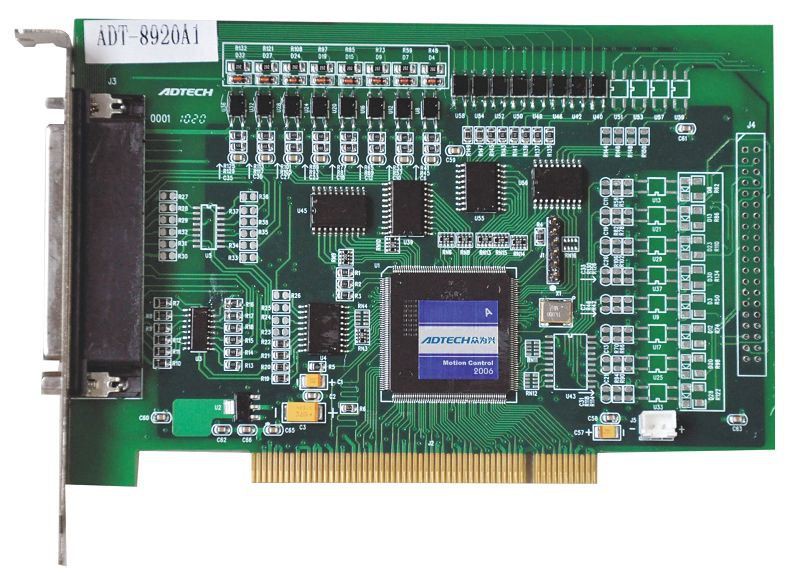

ADT-8920A1 universal motion control card is one of the ADTECH axis motion control card PCI bus computer-based members. Mainly used in multi-axis motion control point, with T-type, S-curve acceleration, hardware cache, position latch function, the product is widely used in testing, advertising, printing, PCB and other industries.
Hardware Index
1. Controllable number of axis: 2 axis;
2. Differential pulse output for each axis, the maximum frequency 2M Hz;
3. Pulse Output Type: Pulse +direction(PUL+DIR) or double-pulse(CW+CCW);
4. Large-capacity hardware cache, the maximum hold 2048 bytes;
Control Function
1. T-shaped, S-shaped curve acceleration and deceleration;
2. Any hardware 2-4 axis linear interpolation;
3. Hardware buffer interpolation, circular interpolation software;
4. Change the speed and movement to achieve the target position;
Software Support
1. Operating system: DOS, WINDOWS;
2. Programming environment: C, BC++,VC,VB;
3. Application examples of open-DOS and WINDOWS;
Application Environment
1. Operating temperature: 0-60℃;
2. Storage temperature: -20-80℃;
3. Temperature: 5-95% non-condensing;
Application
Biological, medical equipment;
Semiconductor automatic processing and testing equipment;
Advertising equipment;
Deliver, shipping and serving
Delivery and shipping: We provide ocean shipping, international express and air transportation to deliver your products to you. (*Arrival time will vary depending on destination country policy and traffic condition.)
Serving: All products have a one-year warranty and online technical support.
