Product Introduction
ADT-8960 motion control card is one of the public members of the six-axis motion control card for the PCI bus-based computer of ADTECH. A system can support up to 16 control card, can control 96 servo/ stepper motor, usually be used in universal point movement. It support encoder feedback, automatically to zero, the handwheel drive, linear interpolation, caching interpolation functions and the model widely used in testing, multi-axis control equipment.
Product Parameter
Type | 6 Axis PCI Motion Control Card | |
Application | Universal point | |
Model | ADT-8960 | |
Appearance | ||
External interface | Axis number | 6 axis |
Pulse frequency | 2M | |
Encoder feedback frequency | 2M | |
Digital input | 32 | |
Digital output | 16 | |
Matching I/O | 16 | |
Encoder shaft | 6 | |
Speed type | Symmetric T-type | √ |
Asymmetric T-type | - | |
S curve | √ | |
Curve layout | Coordinate system group | 1 |
Cache instruction | 2M cache | |
Motion control | Linear interpolation | 2-6 axis |
Circular interpolation | √ | |
Continuous | √ | |
Typical Performance Description

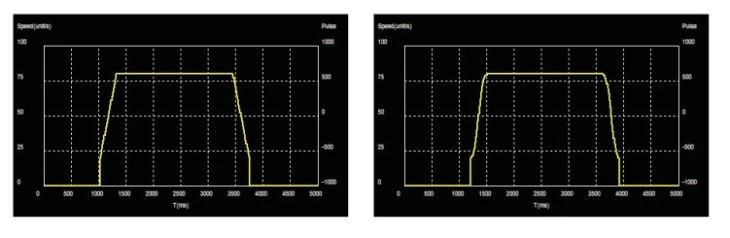

1. Symmetrical T and S type acceleration and deceleration

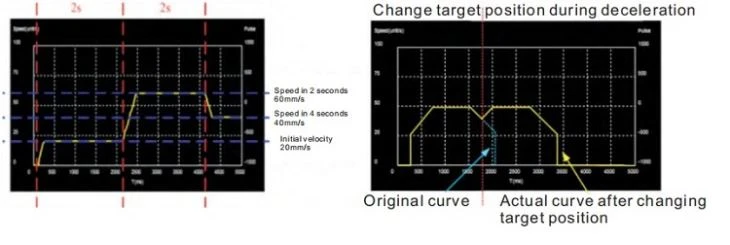

2. Online speed change, online change of target position
Configuration Checklist
Product model | Name | Model description | Dimension parameter | Quantity |
ADT-8960 | Motion control card | Picture | 193mm*109mm | 1 |
Terminal block | Picture | 136mm*72mm | 1 | |
Terminal block | Picture | 136mm*72mm | 1 | |
Data transmission line | Picture | 1.5M | 2 | |
Terminal block | Picture | 58mm*101mm | 1 | |
Wiring | Picture | 270mm | 1 |
Application
Industrial robotic equipment; advertising application: wire bonder.
Deliver, shipping and serving
Delivery and shipping: We provide ocean shipping, international express and air transportation to deliver your products to you. (*Arrival time will vary depending on destination country policy and traffic condition.)
Serving: All products have a one-year warranty and online technical support.
