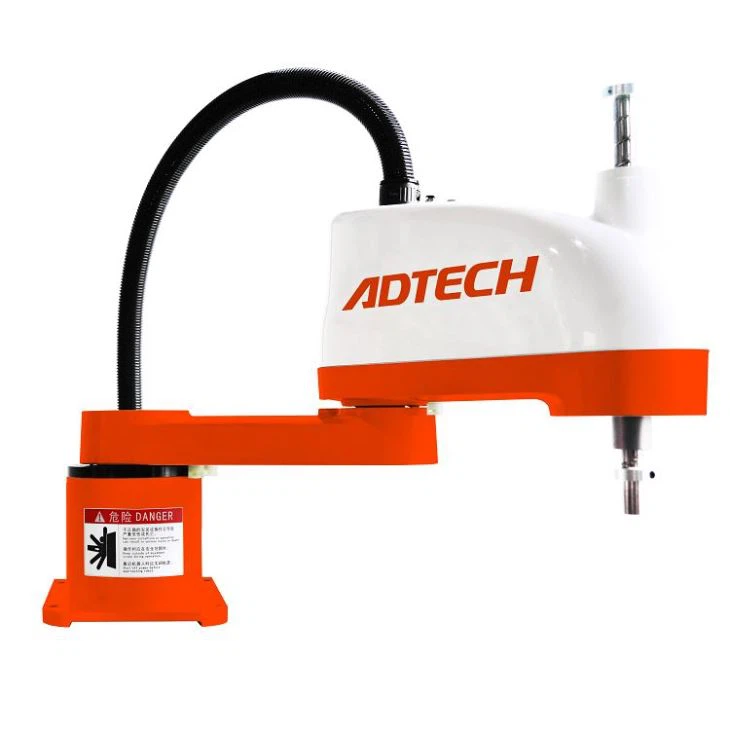

High cost-effective Programmable Robot Arm GR6520
Features
• Light weight
• Fast running speed
• Outstanding design
• High precision of repeated positioning
• Built-in cable
Product Introduction
Model | GR6520 | ||
Species | SCARA | ||
Number of axes | 4 | ||
Arm length | 600mm | ||
Axis Specification | X Axis | Arm Length | 300mm |
Rotation Range | ±140° | ||
Y Axis | Arm Length | 300mm | |
Rotation Range | ±152° | ||
Z Axis | Route | 200mm | |
R Axis | Rotation Range | ±360° | |
Highest Speed | X Axis | 375°/s | |
Y Axis | 600°/s | ||
X,Y Axis Synthesis | 7.7m/s | ||
Z Axis | 1.13m/s | ||
R Axis | 1823°/s | ||
Standard Cycle Time | 0.39s (5kg) | ||
Repeat | X,Y Axis | ±0.015mm | |
Z Axis | ±0.01mm | ||
R Axis | ±0.005° | ||
Rated / Max Load | 5KG/10KG | ||
R Axis Allow Load Moment of Inertia(Rated/Max) | 0.035 KG/㎡ | ||
0.138 KG/㎡ | |||
User Signal Line | 0.2²×26Lines, | ||
Users Pipe | φ6×2 Root φ4×1 Root | ||
Limit Protection | 1.Software Limit | ||
Weight | 22.75KG | ||
Feature and Application
High Performance with Low Cost:
Imported components and motor/driver,and self-developed control system used in the robot as the leading solution provider of motion control system.
Function Key for simple operation: The user can select the desired functions in the memory and set them to the function keys.
Application
Material handling
• 1. Greater flexibility,more stable performance and lower energy consumption;
• 2. High speed;
• 3. Long working and running time;
• 4. Save ground space;
Assembly
• High speed and high repeatable positioning accuracy;
Polishing
• 1. High level of protection;
• 2. High wrist torque.
Moving Space
Why Choose Us
One of the earliest manufacturer of SCARA ROBOT
Professional manufacturer of Robot with professional R&D team
ISO9001: 2015 certificate
