Introduction
DJ1600V is a high-performance dispensing controller which can control 5 or 6 axis, it support standard Modbus ASCII, Modbus RTU and Modbus TCP communication protocols, can be easily used with PLC or industrial computer. It adopts speed-forward algorithm, automatic corner rounding, automatic speed smoothing, to meet customer requirements for accuracy.
Feature
● 2-6 axis interpolation, support for space straight line, space arc, space ellipse, spline curve
● Adopt speed look-ahead algorithm, automatic arc corner speed, and automatic corner turning point
● Support standard Modbus ASCII, Modbus RTU and Modbus TCP communication protocols
● Supports rich processing instructions such as space shift, straight line, ellipse, spline curve, file call, and open user-defined instructions (customers can write specific instructions for specific instructions)
● Image preview and real-time dynamic display processing track
● Multiple processing methods such as cycle processing, single processing, automatic processing, single-step processing, etc.
● File teaching and editing functions, providing advanced editing functions such as batch modification, array copying, graphic translation, graphic scaling, automatic rounded corners, etc., with common graphic libraries for customers to call.
Specification
Item | Description |
Interpolation axes | 2 to 6 axis |
Control type | Servo or stepper |
I/O | 36/24 |
Extension IO | Support RS485 |
Analog | 2 analog output, no analog input |
Handwheel box | √ |
Communication | RS485, RS232, Ethernet port |

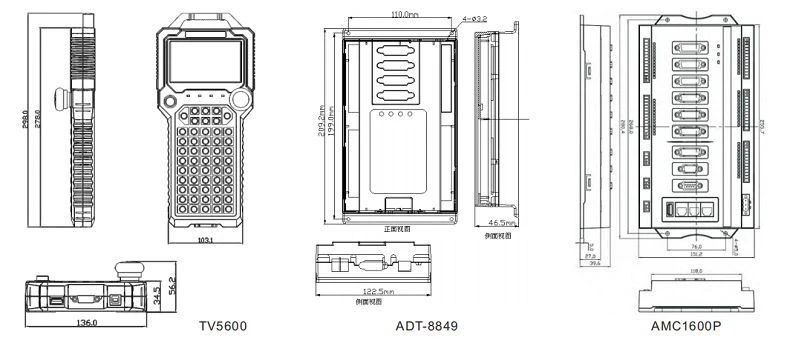

Dimension figure (Unit: mm)
Application
LED application, Inductor industry, Electroacoustic industry
Deliver, shipping and serving
Delivery and shipping: We provide ocean shipping, international express and air transportation to deliver your products to you. (*Arrival time will vary depending on destination country policy and traffic condition.)
Serving: All products have a one-year warranty and online technical support.
