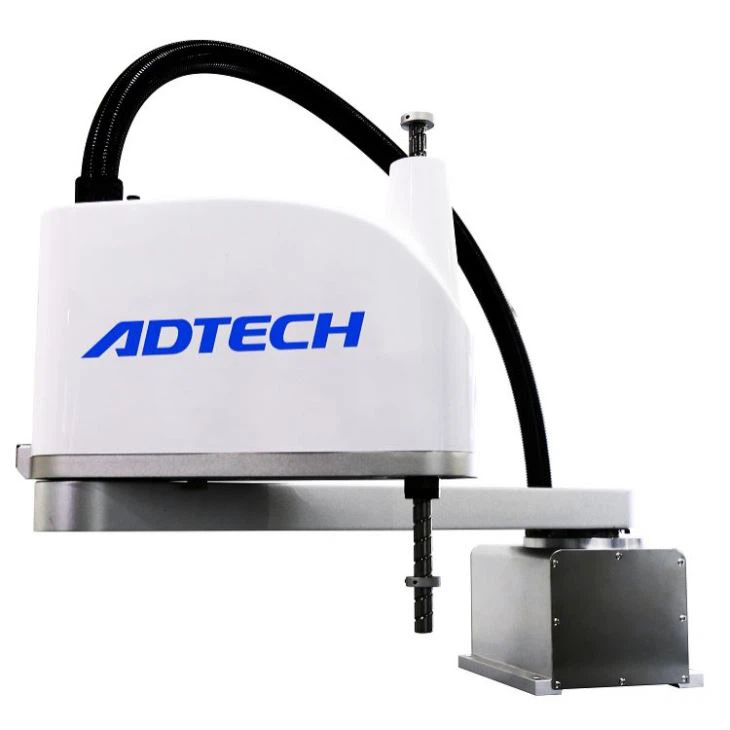

High Quality Scara Robot For Wholesales 900mm AR9225

The Main Application Areas

• Packaging

• Sorting

• Handling

• Assembly

Model	AR9225
Species			SCARA
Number of axes			4
Arm length			900mm

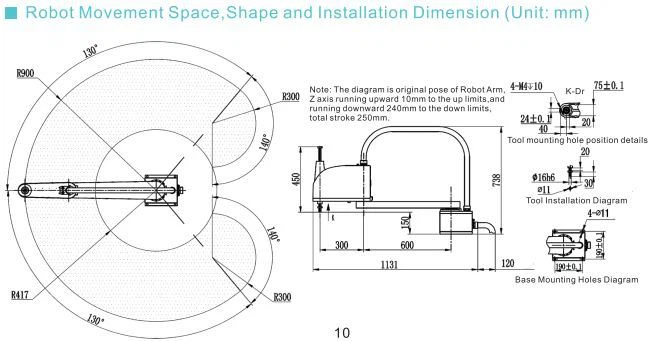

Axis Specification	X Axis	Arm Length	600mm
		Rotation Range	±130°
	Y Axis	Arm Length	300mm
		Rotation Range	±140°
	Z Axis	Route	250mm
	R Axis	Rotation Range	±360°
Highest Speed	X Axis		375°/s
	Y Axis		600°/s
	X,Y Axis Synthesis		9.0m/s
	Z Axis		1.2m/s
	R Axis		1666.7°/s
Standard Cycle Time			0.38s
Repeat Positioning Accuracy		X,Y Axis	±0.015mm
		Z Axis	±0.01mm
		R Axis	±0.005°
Rated / Max Load			2KG/5KG
R Axis Allow Load Moment of Inertia(Rated/Max)			0.005 KG/㎡
			0.035 KG/㎡
User Signal Line			0.2²×16Lines, 8 Output,6 Input
Users Pipe			φ6×2 Root
Limit Protection			1.Software Limit 2.Mechanical Limit(X,Y,Z Axis)
Weight			22.3KG
