Adtech SCARA screw machine makes the locking more flexible, concise and efficient, so that the locking of various specifications of screws is effortless.
At present, Adtech can develop an overall locking integration solution, including the actuator (SCARA screw machine), the locking mechanism (electric batch), the vision system, the control system, the tooling fixture, the man-machine interface, and the machine, with flexibility The characteristics of the workstation can help the terminal to quickly switch between different product lines and start production quickly.
Adtech SCARA screw machine is mainly divided into one-piece type (PR5216) and three-axis type (PTR5512). The former can meet the needs of special processes, and can be customized in software, structure, and core components; while the latter is universal, reflecting the cost-effectiveness advantage, and you can choose to install a modular servo locking mechanism to achieve single/multi-station simultaneous Locking, double the efficiency, also supports external connection and is compatible with mainstream ordinary and intelligent electric batches, suitable for most application scenarios.
Let's take a look at the three-axis SCARA screw machine solution.
PTR5512, the Z-axis has reserved sliders up and down, and can choose to install a modular servo locking mechanism to achieve single/multi-station simultaneous locking, double the efficiency, and also supports external connections and is compatible with mainstream ordinary and intelligent electric batches. Various defects in the attachment process.
1. Versatility
· Single and multi-station can be installed in the load
· Support external suspension of ordinary and intelligent electric batches of different brands, corresponding to different types of screw stations
2. Modular
· Optional Adtech air suction, air blowing, magnetic suction modular servo batches, electric batch control software is built into the robot controller, special locking screw control software.
· Adtech vision system can be selected to support a variety of vision installation schemes.
3. Open enough
· Exclusive support for Adtech, Sanyo, Panasonic, Tamagawa and other domestic and foreign brands of servo motors to act as locking shafts, and the servo batch control software is built into the robot controller as a servo locking mechanism.
· Support Adtech and other domestic and foreign brands of visual systems.
· Support the docking of customer MES systems to help enterprises upgrade their manufacturing equipment.
4. High cost performance
· Compared with the four-axis SCARA screw machine, the cost is lower, and the bulk channel sales are beneficial to integrators and traders.
Some frequently asked questions about PRT5512:
Q1 What size screw is suitable for PTR5512?
A: Choose modularity to support M3~M6, and can also be used with smart electric batches to be compatible with screws below M3.
Q2 How to choose between modular electric batch and external electric batch?
A: Choose according to the application scenario.
❶ If the thread length is longer than the diameter and it is flat locking and shallow groove base locking, you can choose the air blowing modular servo batch.
❷If the screw diameter is larger than the thread length or the middle groove base is locked, the air-breathing modular servo batch can be selected.
❸ When encountering deep groove base locking or locking with many interference positions, you can choose a modular magnetic servo batch.
❹The external electric batch can be freely matched with high-speed and intelligent electric batch
❺ Modular servo batches and external intelligent electric batches have the functions of floating lock, sliding teeth, chute detection and troubleshooting, torque and angle monitoring.
Q3 What should I pay attention to if more than one workstation is used?
A: The overall load, locking accuracy, rhythm, and locking torque of the electric batch and connecting parts.

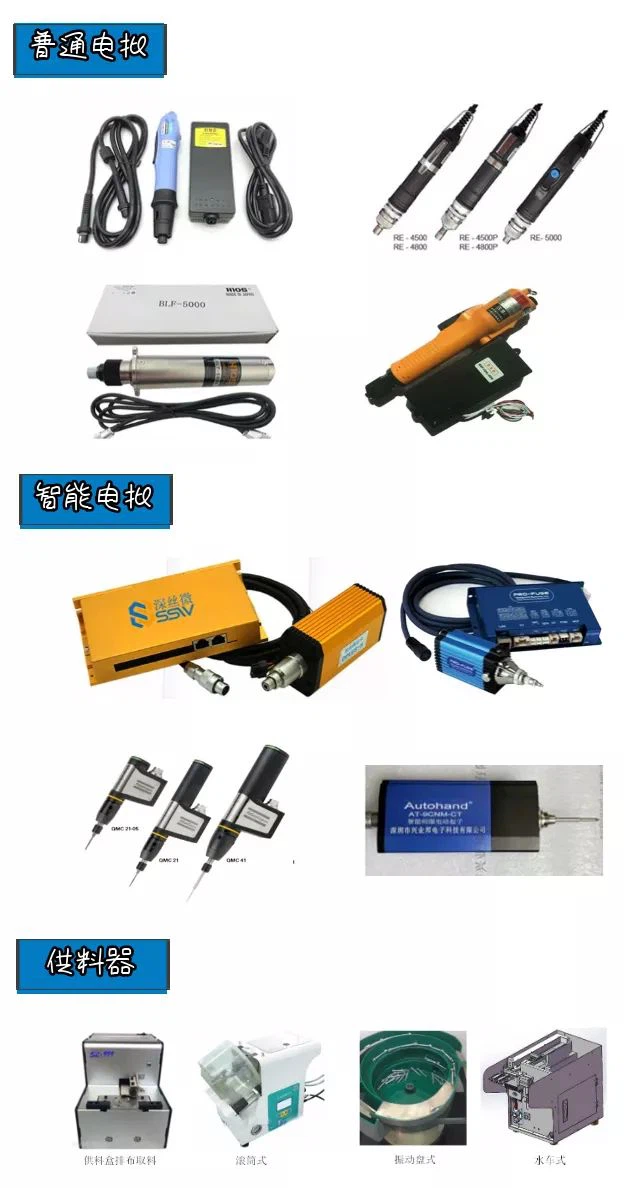

Q4 Can it be sold with electric batch and feeder? Direct sales or agency?
A: We can provide three complete sets of locking solutions including electric batch and feeder. Adtech adheres to the agency model.
