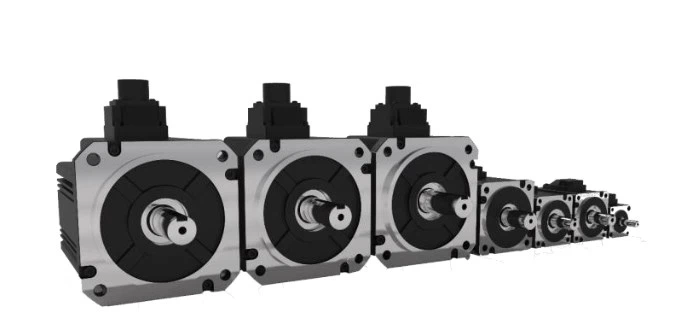

OM2 Servo Motor Sigriner Step

OM2 Servo Motor Sigriner Step

step Sigriner Ω6 servo motor single/three-phase 17bit 23bit incremental and absolute encoder with or without break low medium high inertia 220v 380v
Send Inquiry

1. Rate power from 100 to 3000W.

2. Reduced pulse torque by approximately 65%.

3. 20% performance improvement.

4. Lighter, lesser, less energy consumption.

5. Photoelectric encoder, 23-bit, resolution ratio:8388608, 500HZ speed response frequency.

6. Swift response and high precision.

7. Save cost on connectors and cables.



Specification



product-930-887

motor drive
voltage serial rated speed(r/min) model rated power(W) flange(MM) torque(NM) current(A) model
single/three-phase
200V

OMS

low-inertia

3000 OMS2101 100 40 0.32 1.4 ODSA□6A201□B
OMS2201 200 60 0.64 2.1 ODSA□6A201□B
OMS2401 400 60 1.27 3.2 ODSA□6A401□B
OMS2751 750 80 2.39 4.8 ODSA□6A751□B
OMS2951 1000 80 3.18 4.9 ODSA□6A951□B

OMM

medium-inertia

2000 OMM2102 1000 130 4.77 6 ODSA□6A102□B
OMM2152 1500 130 7.16 8.2 ODSA□6A152□B
OMM2202 2000 130 9.55 10 ODSA□6A202□B
OMM2302 3000 130 14.3 13.8 ODSA□6A302□B

OMG

high-inertia

1500 OMG2851 850 130 5.39 7 ODSA□6A102□B
OMG2132 1300 130 8.6 7.6 ODSA□6A152□B
OMG2182 1800 130 11.5 12.2 ODSA□6A202□B
OMG2292 2900 180 18.4 19 ODSA□6A302□B
OMH
high-inertia
3000 OMH2201 200 60 0.64 1.9 ODSA□6A201□B
OMH2401 400 60 1.27 2.8 ODSA□6A401□B
OMH2751 750 80 2.39 4 ODSA□6A751□B
OMH2951 1000 80 3.18 4.9 ODSA□6A102□B
2000 OMH2102 1000 130 4.77 6 ODSA□6A102□B
OMH2152 1500 130 7.16 8.2 ODSA□6A152□B
OMH2202 2000 130 9.55 10 ODSA□6A202□B
OMH2302 3000 130 14.3 13.8 ODSA□6A302□B



1. First □ P: pulse, N, bus.

product-760-443

2. Second □: Basic model (B), General model (G), Full-function model (F)

product-593-592





function basic model(B) general model(G) full-function model(F)
USB communication ○ ○ ○
Modbus ○ ○ ○
Wifi   ○ ○
Safety functions     ○
Command pulse input ○ ○ ○
Analog voltage input   ○ ○
The second encoder     ○
High-speed DI (3 ways)   ○ ○
High-speed DO (2 ways)   ○ ○
High-speed probe   ○ ○
Flying beat   ○ ○
Gantry function     ○
Black box   ○ ○
Contracting brake module   ○ ○
CN1 ○ ○ ○
CN2 ○ ○ ○
CN3 ○ ○ ○
CN4     ○
CN5   ○ ○
CN6 ○ ○ ○
CN7 ○ ○ ○
CN8     ○



Application



1. Automation field, like CNC machines.

2. Laser cutting, welding, and, carving.

3. Semiconductors.

4. Flocking machines

5. Lithium battery.
6. robotic arms.
