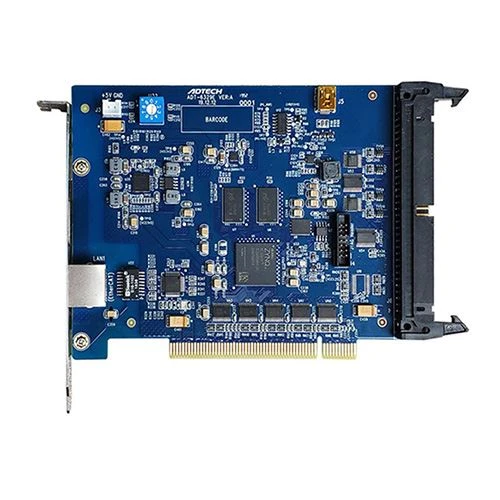

ADT6329E EtherCAT bus control card, supports up to 64 nodes, has the function of motion trajectory pre-processing planning, supports four groups of independent pre-processing interpolation channels, supports up to 32 axis interpolation, a variety of acceleration and deceleration control, space arc interpolation, logical position variable loop, virtual gantry synchronization, physical axis mapping, Electronic CAM, 2-3 dimensional position comparison, high-speed flybat support 8 encoder feedback input, the maximum receiving frequency of 4MHz. ADT6329E EtherCAT bus control card, supports up to 64 nodes, has the function of motion trajectory pre-processing planning, supports four groups of independent pre-processing interpolation channels, supports up to 32 axis interpolation, a variety of acceleration and deceleration control, space arc interpolation, logical position variable loop, virtual gantry synchronization, physical axis mapping, Electronic CAM, 2-3 dimensional position comparison, high-speed flybat support 8 encoder feedback input, the maximum receiving frequency of 4MHz.
Send Inquiry
Functional features:
Supports up to 64 nodes: EtherCAT bus servo (stepping) control, bus IO module expansion
Communication cycle: 250us-4ms
It has the function of motion trajectory preprocessing planning and supports four groups of independent preprocessing interpolation channels
Supports QXE, EM, Panasonic, Sanyo and other communication servers (stepper) with EtherCAT protocol or other EtherCAT communication extension modules
Supports up to 32 axis interpolation
Multiple acceleration and deceleration control, space arc interpolation, logical position variable ring, virtual gantry synchronization, physical axis mapping, electronic CAM, 2-3 dimensional position comparison, high-speed fly shot
Support 8 encoder feedback input, maximum receiving frequency 4MHz
