Features & Function
1. GH-CNC2208 is a two-axis compression spring machine contain wire feeding axis and cam axis, the two axis can act independently of synchronously by build the program
2. The pitch, outside diameter and cutter are driven by cam motors. The wire feeding is controlled by an independent motor
3. The cutter can be adjusted inside and outside of the cabinet easily and flexibly
4. Optional accessories: Torsion device, oil seal device, price-up device, length gauge.
Product Range

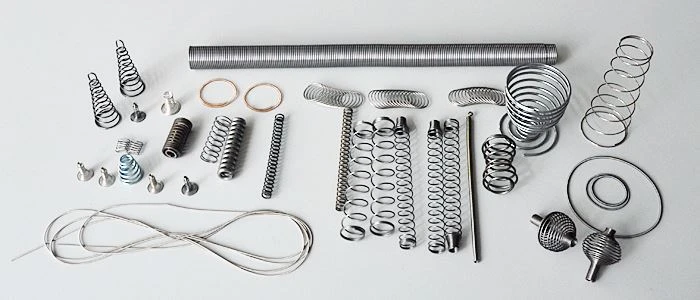

This machine can make various compression springs, oil seal springs, battery springs and so on
Specification
Model: GH-CNC2208
Wire Diameter(mm): 0.15-0.8
Axis: 2
Maximum Outside Diameter(mm): 20
Maximum Feeding Length(mm): Unlimited
Maximum Manufacture speed(pcs/min): 500
Memory Number(pcs): 1000
Wire Feed Servo Motor(kw): 1.0
Cam Servo Motor(kw): 1.0
Power AC: Single phase, 220V
Dimensions(mm): L-870*W-780*H-1600
Machine Weight(kg): 350
