Product Introduction

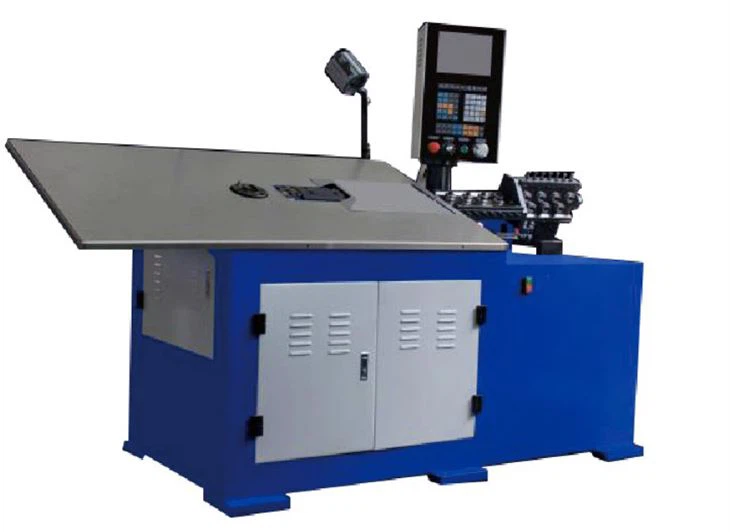

GH-CNC4-80 is a forming machine which can modify the outer diameter angle of the product at any time according to the working conditions of the fluorescent screen. The design of automatic acceleration function of the thread stand make the production easier and more effective. Applicable to production: wire forming equipment for car seat suspension springs, sun visor skeletons, car door lock levers, handicraft metal wires, sanitary ware tableware supports, storage cages, shopping trolleys and other wire rods.
Technical Parameters
Model ：GH-CNC4-80
Wire diameter： Ø3.0mm~Ø8.0mm iron wire
Axes number ：4axis
Wire feed length ：Infinite
Wire feed speed ：100 meter/min
Wire feed instruction value ：±0.01~±9999.99
Cam instruction value ：±0.10~±359.90
Wire feed shaft servo power ：2.9KW
Torsion shaft servo power ：1.2KW
Lifting platform servo motor ： 0.75KW
Cut shaft servo motor ：0.75KW
Machine weight ：2800kg
Machine sizes ：2750*850*1650mm
